Digital temperature control
Separate set and live temperature displays make heat settings easy to monitor during production.

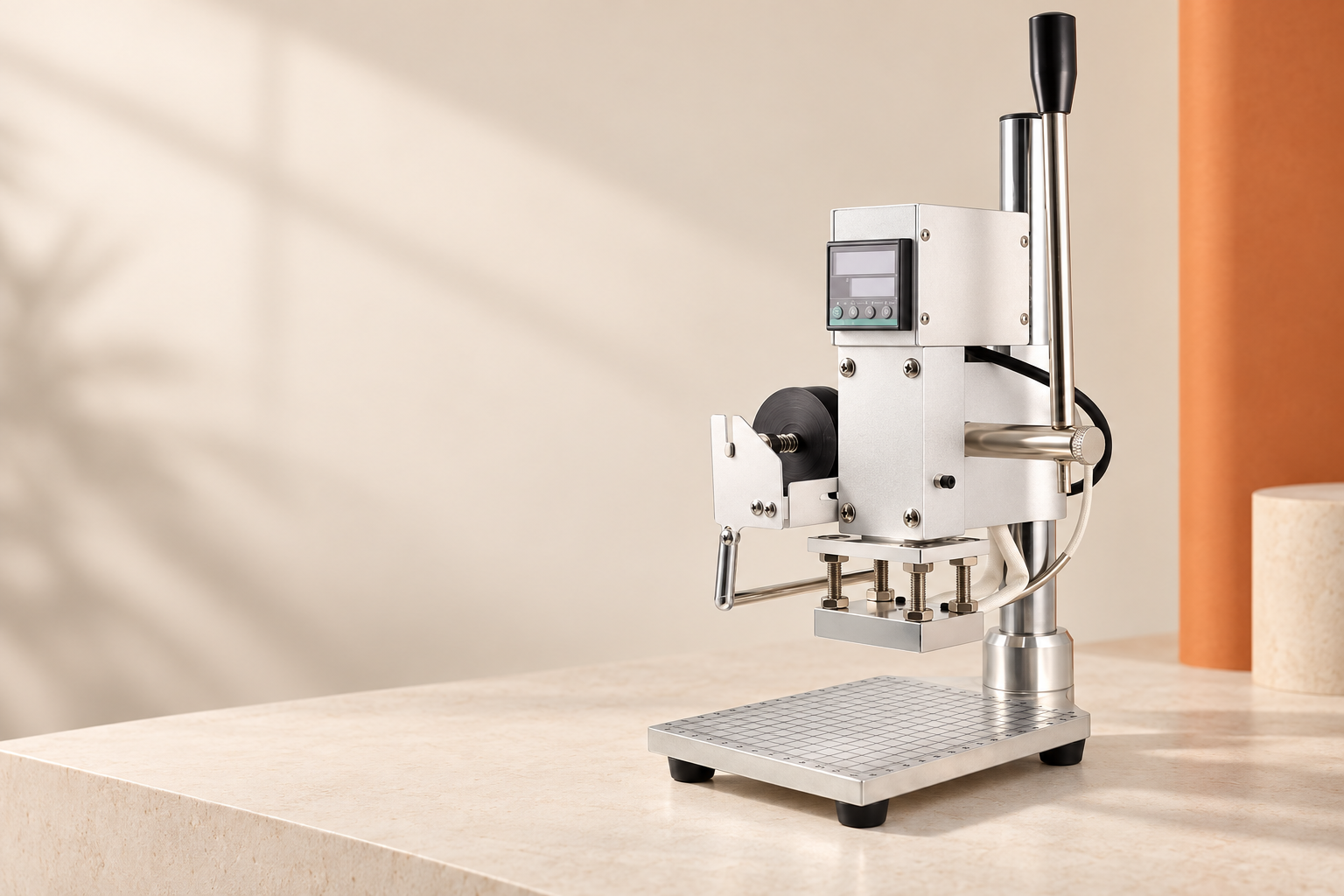

DIGITAL MANUAL HOT FOIL PRESS
WT-90DS
Precise heat. Direct control. A compact press made for crisp logos on leather, packaging and custom products.
- 500 WHeating power
- 3 sizesPlaten options
- DigitalLive temperature display
01 / BUILT FOR CONTROL
A clean impression starts with a stable setup.
The WT-90DS combines a manual pressure lever with digital temperature control for repeatable small-batch hot stamping. Its graduated worktable helps align the product, while the adjustable column accommodates flat materials and finished goods.
Use it for metallic foil logos, blind embossing, custom lettering and branded details on leather, PU, paper, PVC, coated surfaces and wood.
Three platen formats
Choose 50 × 70, 80 × 100 or 100 × 130 mm to match your artwork and production needs.
Measured positioning
A 165 × 140 mm graduated base supports faster alignment and more consistent placement.
Flexible foil setup
Select a basic press or add the foil roll holder for a cleaner, more efficient workflow.
02 / APPLICATION
Made for the details customers notice.

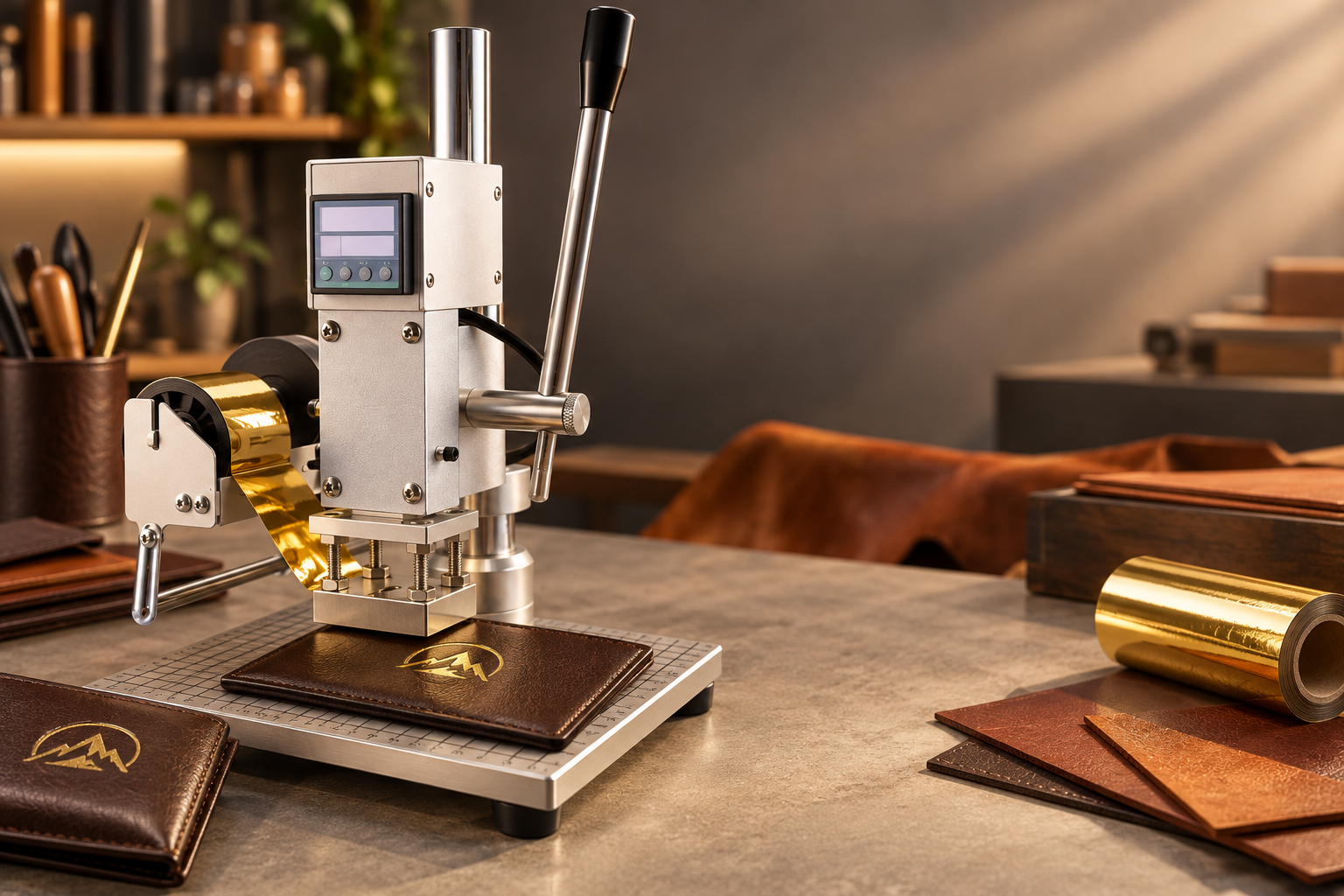

Produce metallic logos and debossed marks on leather wallets, handbags, notebook covers, gift boxes, cards, wooden products and promotional goods.
Leather & PUPaper & packagingPVC & acrylicWood products
03 / SPECIFICATIONS
Compact footprint.
Production-ready features.
ModelWT-90DS
OperationManual lever
Temperature controlDigital, real-time display
Power500 W
Heating plate options50 × 70 / 80 × 100 / 100 × 130 mm
Graduated base165 × 140 mm
Maximum product clearanceApprox. 110 mm
Column height adjustmentUp to 200 mm
Machine weightApprox. 6.5 kg
Packed weightApprox. 7 kg
Packing dimensions435 × 280 × 215 mm
VoltageConfigured for destination market
Specifications may vary by platen size and configuration. Contact us to confirm the version for your application.
05 / QUESTIONS
Before you order.
Which platen size should I choose?
Choose a platen larger than your artwork while keeping it suitable for the product surface. Send us your logo dimensions and material, and we will recommend the correct size.
Can WTONG make the logo mold?
Yes. Custom copper dies can be produced from clear vector artwork. Mold size, depth and mounting method are matched to the machine configuration.
Can it stamp finished leather products?
Yes, subject to the shape, clearance and working area. A finished-product workbench or positioning fixture may be recommended for bags, wallets and shaped items.
Which voltage is available?
The electrical configuration is confirmed according to the destination market. Please include your country when requesting a quote.
START WITH YOUR SAMPLE
Tell us what you want to stamp.
Send the material, product dimensions, logo size, preferred finish and destination country. We will recommend the platen, mold and foil configuration.
