COMPACT MANUAL HOT STAMPING PRESS

WT-90XT

Craft precision.
Walnut character.

A compact 200W manual press that combines controlled heat, direct pressure and organized tooling storage for leather branding and small-batch work.

200 WPower
140 × 44 mmHeating area
4.5 kgNet weight

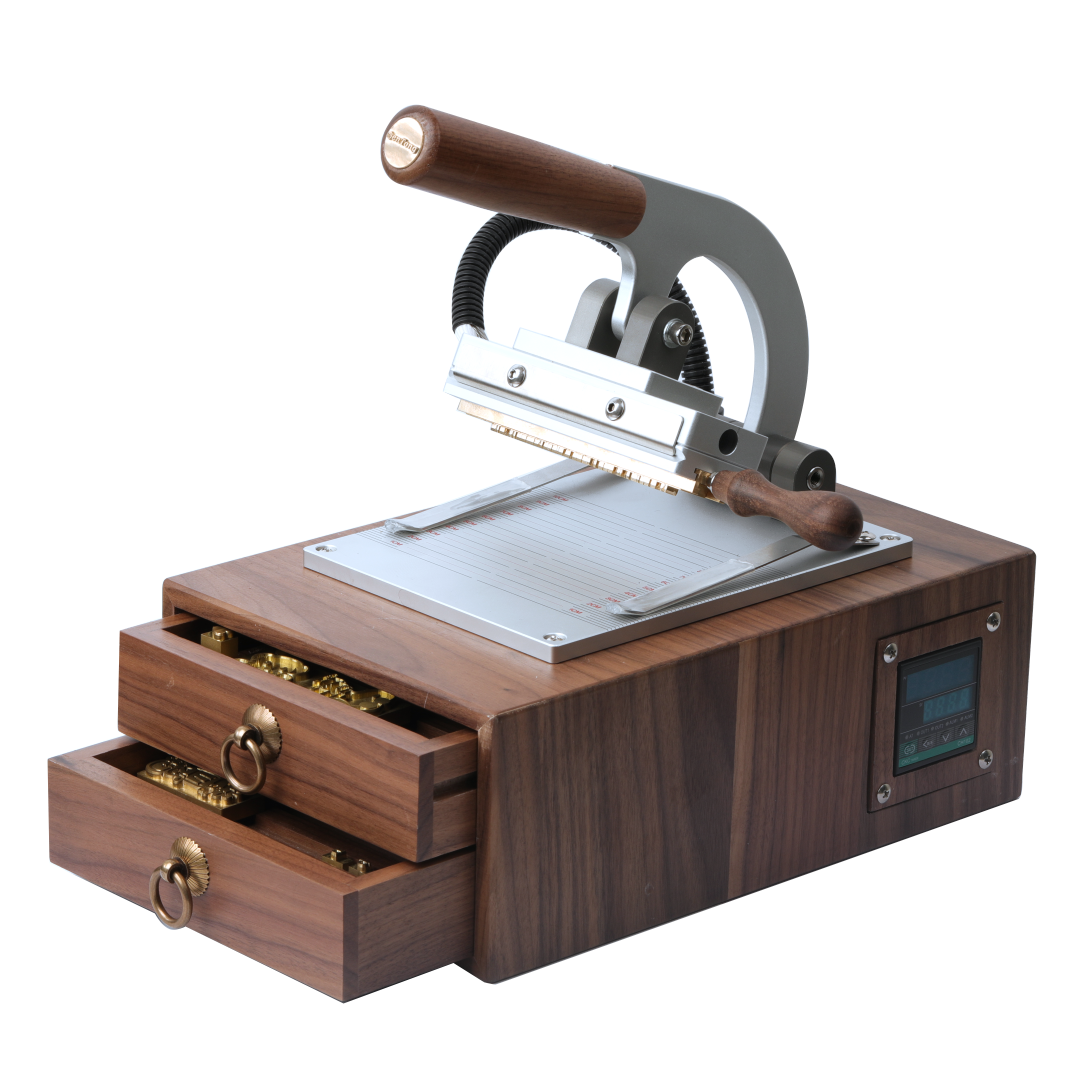

WT-90XT walnut-base manual hot stamping machine

01 / PRODUCT OVERVIEW

A workshop press designed to stay organized.

The WT-90XT combines a manual hot stamping head with a walnut-finished box base. Two front drawers keep copper dies, movable type and small accessories close to the work area.

Its graduated platform and adjustable positioning clips support repeatable placement, while the side-mounted digital controller helps maintain the selected temperature.

01

Integrated storage

Two drawers organize dies, letters and frequently used accessories.

02

Graduated worktable

Scale marks and positioning clips make repeat placement easier.

03

Digital heat control

A side-mounted controller supports stable settings for repeat jobs.

04

Quick die access

The T-slot mounting area simplifies fitting and changing compatible dies.

WT-90XT stamping gold logos on black leather card holders

02 / APPLICATION

Made for leather branding and custom work.

Use the WT-90XT for metallic foil logos or heated branding on smooth, heat-compatible materials. Test the actual product before production.

Leather card holdersPU patches and labelsWallets and small accessoriesCustom names and logos
Read the leather stamping guide ↗

03 / MACHINE ANATOMY

Every part has a practical purpose.

The front and rear assemblies are organized for safe heating, repeatable positioning and easy access to everyday tooling.

Operating handle

Direct manual leverage for controlled stamping pressure.

Heating plate

Holds the compatible die or movable-type fixture.

Graduated platform

Scale marks support accurate product placement.

Positioning clips

Help hold repeat jobs in the same location.

WT-90XT component overview
Protected heater cable

Corrugated insulation shields the heating connection.

Digital controller

Displays and maintains the selected temperature.

Walnut storage drawers

Keep letters, dies and small accessories organized.

Power protection

Rear switch, socket, vents and leakage-protection device.

04 / TOOLING & RESULTS

Change the tooling. Change the mark.

The T-slot mounting area supports compatible custom logo dies and movable-type holders. Select the tooling for fixed branding, names, numbers or short variable text.

Custom copper dieFor a fixed logo or graphic with consistent detail.
Movable typeFor names, initials, dates and changing information.
Foil or blind embossingProduce metallic color or a restrained debossed finish.
Custom gold logo stamped on black leather
Custom logo die
01Install

Secure the die or type holder in the mounting slot.

02Align

Use the graduated table and clips to position the item.

03Stamp

Apply heat and even manual pressure for a clean result.

05 / SPECIFICATIONS

Compact dimensions, practical capacity.

Electrical configuration and plug type are confirmed for the destination country.

ModelWT-90XT
FunctionHot stamping / heated branding
Rated power200 W
Voltage110 V or 220 V
Heating element140 × 44 mm
Machine dimensions200 × 298 × 238 mm
Net weightApprox. 4.5 kg
Main materialsAluminum alloy + walnut wood
PlugConfigured for destination country

06 / WORKFLOW

From artwork to a clean impression.

01

Install the die

Secure a compatible copper die or movable-type holder in the mounting slot.

02

Position the product

Use the scale and clips to align the stamping area consistently.

03

Set temperature

Preheat according to the material, die size and selected foil.

04

Press and inspect

Apply even manual pressure, then adjust one variable at a time.

07 / QUESTIONS

Before you order.

What materials can the WT-90XT stamp?

It is primarily suited to leather, PU and other smooth, heat-compatible items. Always test the actual substrate and coating.

Does the machine include a logo die?

Custom copper dies and movable-type kits can be configured separately according to the artwork and application.

Which voltage should I select?

Choose 110 V or 220 V according to the destination country. The appropriate plug can be configured before shipment.

REQUEST A QUOTE

Tell us what you want to stamp.

Send the material, product dimensions, logo size, voltage and destination country. We will confirm the die and setup.
