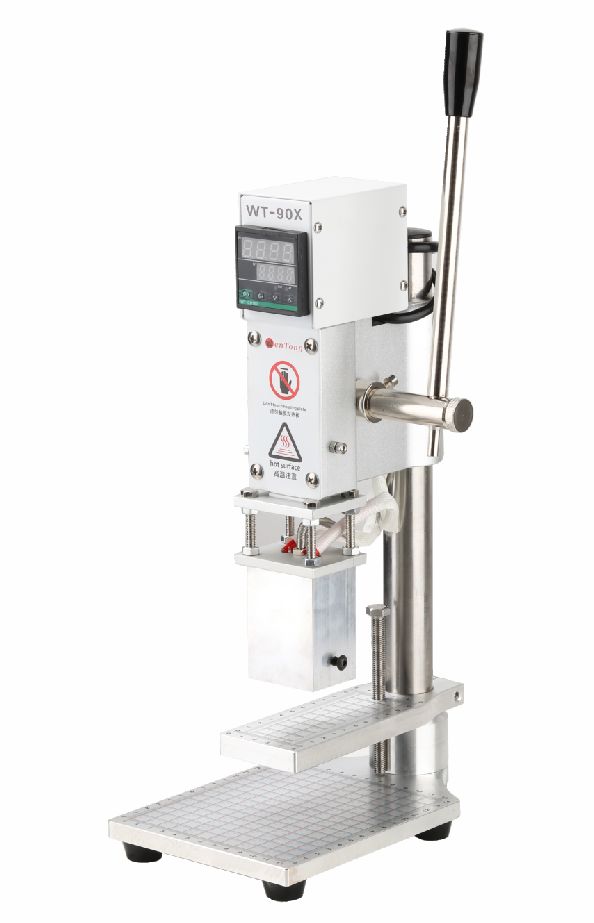

FINISHED-SHOE HOT STAMPING PRESS

WT-90X

Mark the shoe.
Protect the shape.

A compact manual press with adjustable height and a finished-product support, built for hot stamping leather shoes, uppers, insoles and shaped footwear components.

400 WPower
0–150 mmAdjustable stroke
140 × 160 mmWorktable
WT-90X shoe hot stamping machine with leather dress shoe

01 / PRODUCT OVERVIEW

Reach finished products that flat presses cannot.

The WT-90X is designed around shaped footwear. Its adjustable column and removable support help bring a shoe side, toe area, insole or upper beneath the heated die without flattening the complete product.

Digital temperature control, a graduated base and direct lever pressure make it suitable for sampling, personalization and flexible short production runs.

01

Finished-shoe support

Position completed shoes and shaped products beneath the die.

02

Adjustable height

Up to 150 mm of travel accommodates different product profiles.

03

Digital control

Stable temperature display with approximately 0–3°C deviation.

04

Scaled positioning

Graduated work surfaces help repeat the same logo location.

WT-90X stamping a gold logo on a brown leather shoe

02 / FOOTWEAR APPLICATIONS

One press, several shoe components.

Match the heated die, support and transfer material to the surface being decorated.

Finished leather shoe sidesShoe toes and upper panelsLeather and PU insolesSilicone or PU cushionsHeat-transfer labelsBlind branding without foil

03 / TOOLING

Configure the heater for the artwork.

Heating blocks are selected according to the logo dimensions and product access. Confirm the complete die size before ordering.

20 × 30 × 70 mmCompact marks and narrow shoe components
30 × 40 × 70 mmMedium logos and common upper applications
40 × 50 × 70 mmLarger artwork and broader contact areas

04 / SPECIFICATIONS

Compact structure with flexible clearance.

Voltage and plug are configured for the destination country.

ModelWT-90X
FunctionHot stamping / heated branding / heat transfer
Rated power400 W
Voltage110 V or 220 V
Temperature rangeUp to 400°C
Temperature deviationApprox. 0–3°C
Adjustable stroke0–150 mm
Worktable140 × 160 mm
Machine dimensionsApprox. 140 × 165 × 350 mm
Net / packed weightApprox. 5.5 / 6.5 kg

05 / WORKFLOW

Set up around the product.

01

Choose the support

Use the flat table or shaped fixture according to the shoe component.

02

Install the die

Secure the correct heating block and custom logo die.

03

Set heat and height

Adjust the temperature and clearance for the material.

04

Test and record

Balance pressure and dwell time on a sample before production.

06 / QUESTIONS

Before you order.

Can the WT-90X stamp a completed shoe?

Yes. The adjustable height and finished-product support are intended for shaped products, but the exact shoe dimensions and logo position should be checked before ordering.

Can it stamp insoles and PU cushions?

Yes, when the material is heat compatible and the appropriate heater, die and transfer medium are selected.

Is a custom die included?

Custom copper dies and heating blocks are configured separately according to the artwork and application.

REQUEST A QUOTE

Send us the shoe and logo position.

Include product photos, shoe dimensions, logo size, material, voltage and destination country.
