Movable type
Build names, initials, dates and serial information with replaceable character sets.

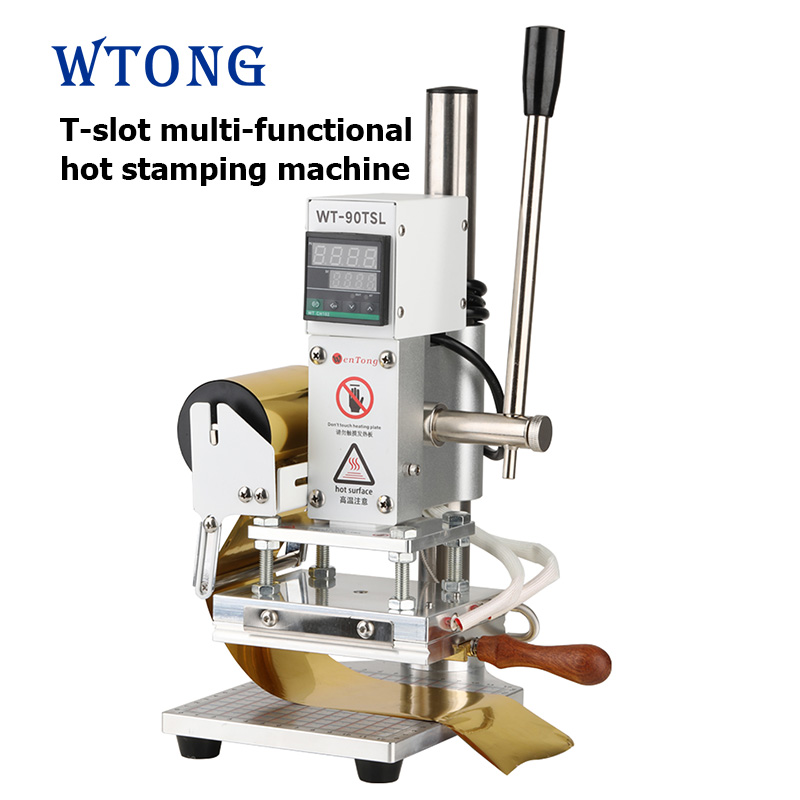

T-SLOT MULTIFUNCTIONAL HOT STAMPING MACHINE
WT-90TSL
Change the message.
Keep the precision.
A flexible 500 W manual press for movable type, custom logo dies and metallic foil—built for finished products that need generous working clearance.
500 WPower
100 × 130 mmHeating plate
130 mmProduct clearance
01 / PRODUCT OVERVIEW
One press. Two tooling methods.
The WT-90TSL combines a 130 mm movable-type slot with custom-die mounting. Operators can change names, numbers and short text, or install a fixed copper logo die for repeat branding.

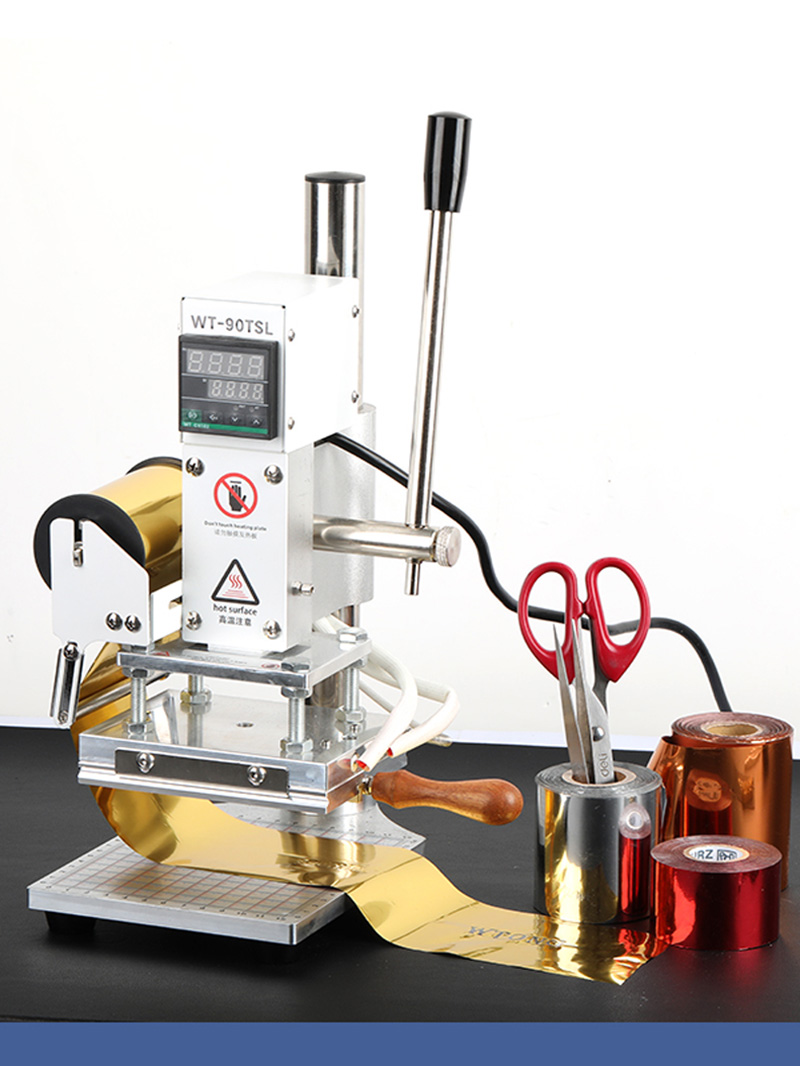

Automatic foil feeding keeps the work area tidy, while the adjustable machine head provides clearance for bags, wallets, shoes, boxes and other finished products.
Custom logo dies
Mount a copper die for repeatable logos, artwork and brand marks.

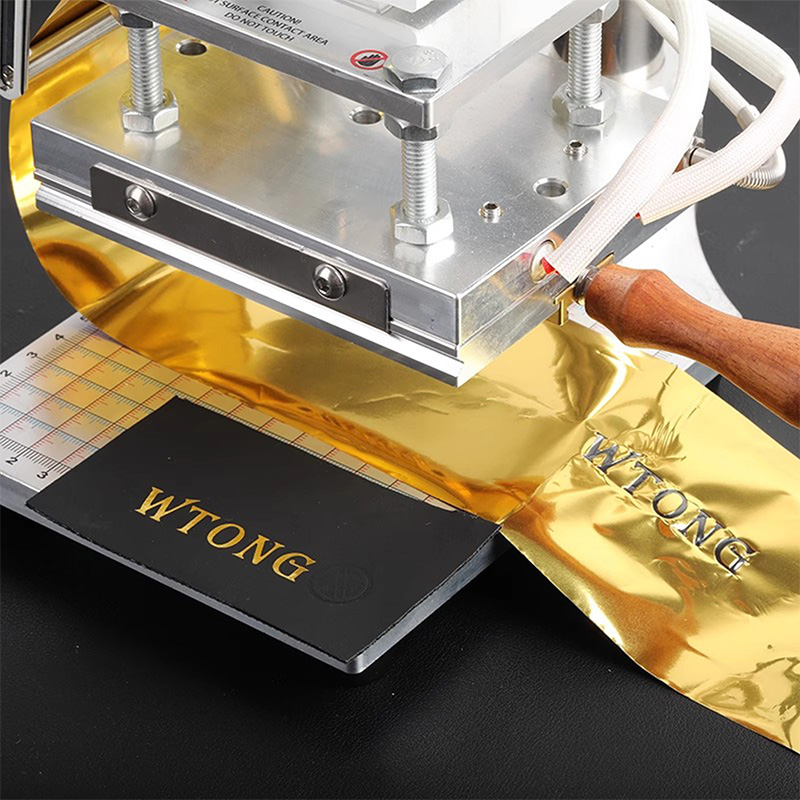

Foil or blind marking
Create metallic impressions or restrained heated debossing on compatible materials.
02 / APPLICATION
Built for variable personalization.
Use it for leather tags, wallets, belts, handbags, insoles, phone cases, paper cards, coated packaging, wood, bamboo and selected PU, PVC or plastic products.
Always test the actual substrate, coating and foil before production.03 / SPECIFICATIONS
Capacity for finished products.

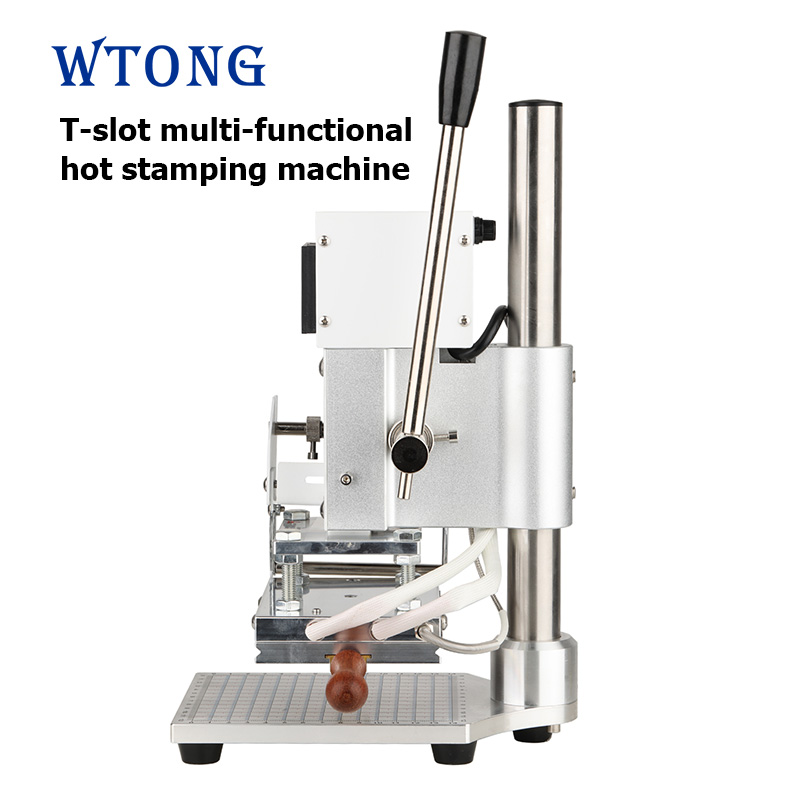

The elevated head and adjustable platform help accommodate taller or assembled items without sacrificing desktop operation.
ModelWT-90TSL
Power500 W
Voltage110 V / 220 V
Temperature50–350°C digital control
Heating plate100 × 130 mm
Movable-type slot130 mm long
Product clearanceUp to approx. 130 mm
Worktable140 × 160 mm, graduated
Maximum pressureApprox. 85 kg
Machine size140 × 220 × 360 mm
Package size215 × 280 × 435 mm
Net / packed weightApprox. 5 / 6.5 kg
04 / CONFIGURATION
Set it up for your workflow.
Optional 6, 8 and 10 mm character sets for changing text.
Supports repeat alignment on the graduated worktable.
Provides support for irregular or assembled items.
Configure serial tools or engraved copper dies from your artwork.
REQUEST A QUOTE
Tell us what you need to stamp.
Send your material, product dimensions, logo or text size, voltage and destination country. We will confirm the machine, holder, die and foil.
