MANUAL HOT FOIL PRESS

WT-90GS

Compact control for crisp foil stamping and blind embossing—built for leather goods, packaging, PVC, plastic and wood.

500 WHeating power
50–350°CTemperature
3 sizesHeating platens

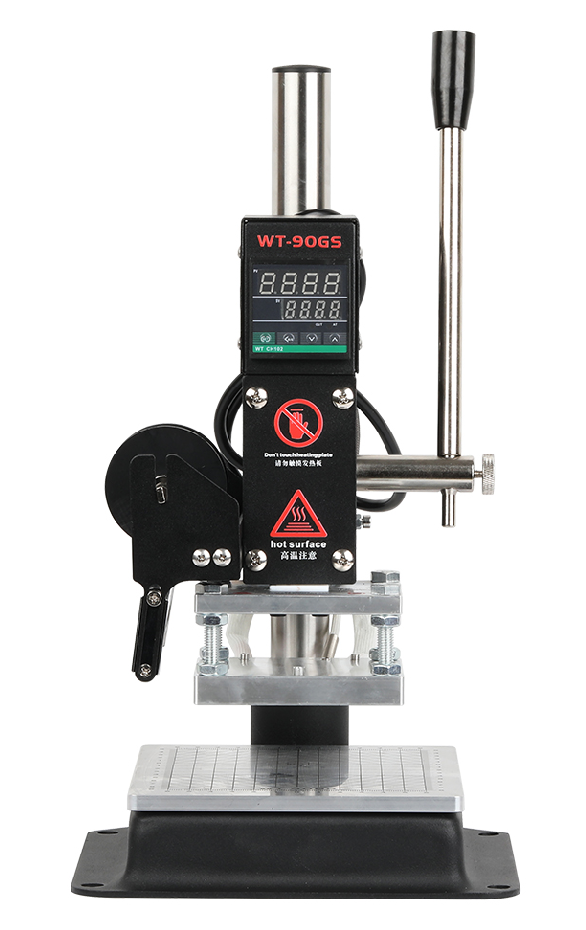

DIGITAL CONTROL / MANUAL PRESSUREWT-90GS manual hot foil stamping machine front view

01 / PRODUCT OVERVIEW

Repeatable results without a production-line footprint.

The WT-90GS combines a manually controlled pressure lever, a digitally monitored heater and adjustable working height. Its 120 × 150 mm graduated base makes positioning small products more predictable.

Choose the platen size and foil-feed configuration around your artwork, material and production volume.

01

Digital heat control

Set and monitor 50–350°C for different foils and materials.

02

Adjustable pressure travel

Fine-tune press travel up to 45 mm for a controlled impression.

03

Flexible die position

U-shaped mounting slots let you adjust the copper die position.

04

Graduated worktable

The 120 × 150 mm base supports repeatable alignment.

WT-90GS angled side view

02 / COMPACT & ADAPTABLE

Set the height. Align the piece. Apply the mark.

The column provides up to 150 mm of height adjustment for flat stock and a variety of finished products. The long lever gives direct pressure feedback.

  • Manual lever operation
  • Anti-slip handle
  • Adjustable column height
  • Optional foil roll holder

03 / APPLICATIONS

One press. Multiple branded finishes.

Use it for metallic foil stamping and blind embossing on leather, paper, wood, PVC and plastic. Sample testing is recommended before production.

Foil stamping and embossing examples on several materials

04 / TECHNICAL DATA

WT-90GS specifications

Electrical configuration and plug are prepared for the destination market.

ModelWT-90GS
OperationManual lever
Power500 W
Temperature range50–350°C
Voltage110 V / 220 V
Worktable120 × 150 mm
Heating platen options50 × 70 / 80 × 100 / 100 × 130 mm
Press travelUp to 45 mm
Height adjustmentUp to 150 mm
Net / packed weight6.5 / 7.5 kg
Packing dimensions210 × 280 × 390 mm
Plug optionsUS / EU / UK / CN

05 / CONFIGURATIONS

Choose the format around your artwork.

Three standard platen sizes are available with or without a foil roll bracket.

50 by 70 millimeter configuration
50 × 70 mmCompact platen

For small logos, tags and leather accessories.

80 by 100 millimeter configuration
80 × 100 mmMedium platen

For cards, wallets and packaging.

100 by 130 millimeter configuration
100 × 130 mmLarge platen

For larger graphics and products.

T-slot configuration
T-slot setupMovable type option

100 × 130 mm with type groove and foil holder.

06 / SIMPLE WORKFLOW

From setup to finished mark in four steps.

  1. Mount the dieSecure the custom copper die at the center.
  2. Set the temperatureChoose a value for the material and foil.
  3. Adjust the heightSet clearance for product thickness.
  4. Align and pressPosition the product and pull the lever.

07 / BEFORE YOU ORDER

Match the machine to your job.

Which platen size should I choose?

Select a platen larger than the artwork but suitable for the product surface. Send us the logo size and material for a recommendation.

Can you supply a custom logo die?

Yes. A custom copper die can be made from clear vector artwork and matched to the selected platen.

Does it include foil and fixtures?

Foil, copper dies and positioning accessories are selected according to your application.

Which voltage and plug will I receive?

110 V and 220 V versions are available with US, EU, UK or CN plug options.

START WITH YOUR SAMPLE

Tell us what you want to stamp.

Send the material, product dimensions, logo size, finish and destination country. We will recommend the platen, die and accessories.
